CP series

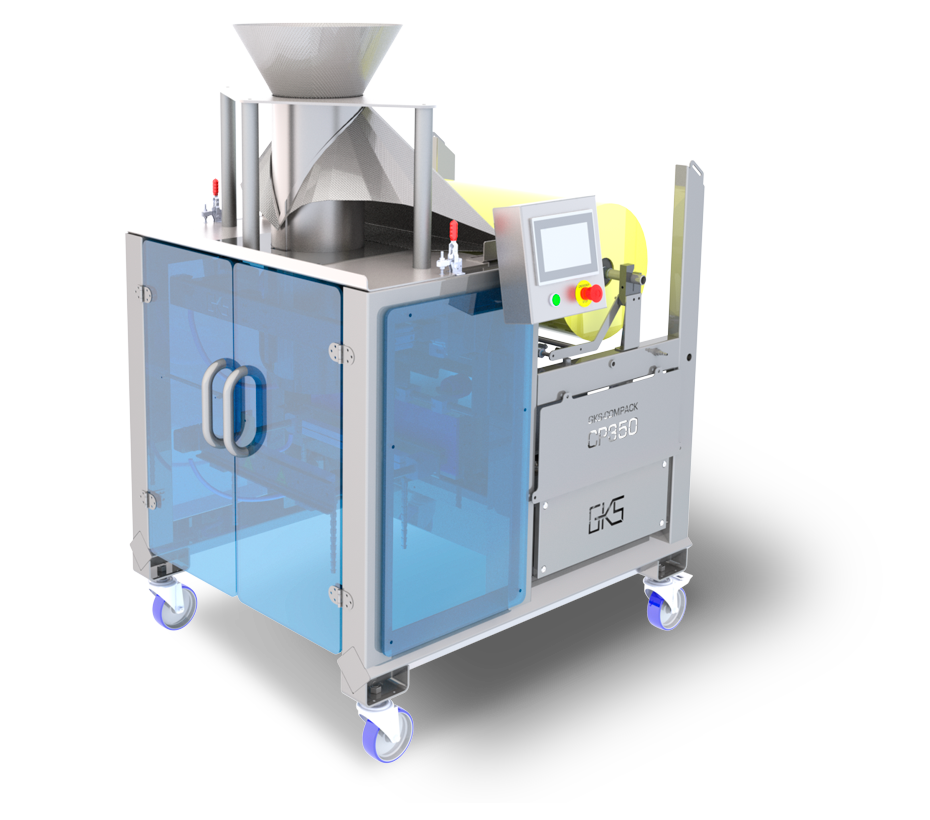

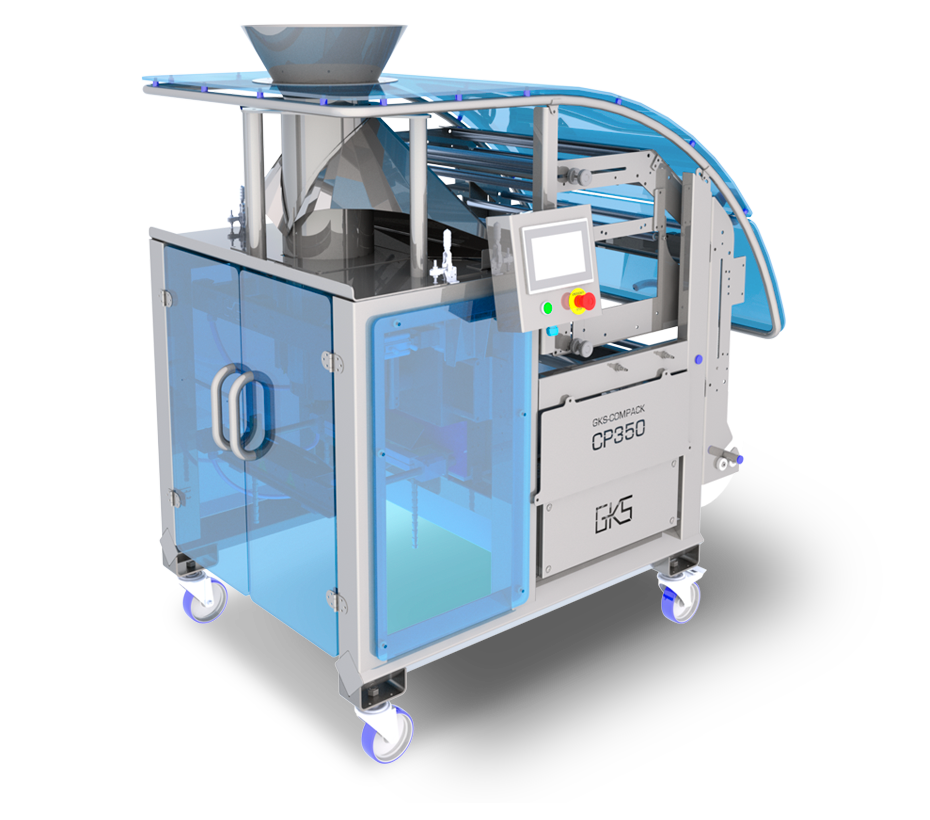

CP 350 and CP 350 PLUS: Compact, flexible and versatile

The 350 and 350 PLUS machines are suitable for packing a wide variety of food and non-food products. They work seamlessly with a variety of weighing and dosing systems, and are also very suitable for manual filling. The stainless steel machines are designed with reliability, flexibility and hygiene in mind. Thanks to their open construction, they are extremely easy to clean.

Low height coupled with a small footprint makes the CP 350 and CP 350 PLUS very versatile in small production areas as well as industrial environments. Modules can be exchanged within minutes, maximizing usability whilst lowering downtime and cost. Machines can be configured in line with customer requirements on request.

CP 350 and CP 350 PLUS highlights

  • Compact and flexible
  • Stainless steel and open construction for easy cleaning
  • Robust build quality
  • Modular construction
  • Allen Bradley PLC and electrical components
  • Servo-driven film transport for accurate bag length
  • 7” full color touch screen
  • Low power and air consumption
  • Machine in mobile frame

Download data sheet

Video: Salad packing CP 350 Combimat 14 FFQ baby leaf

Technical specifications

CP 350

CP 350 PLUS

Bag width (pillow)

75 - 350 mm

Max. bag length

Unlimited

Max. bag length per sealing step

235 mm

Max. production speed

30 bags/min
40 bags/min

Film thickness

25 - 120 µ

Core diameter

76 mm (3")

Max. film width

750 mm

Max. outer diameter film roll

320 mm

Max. outer diameter film roll

320 mm

Voltage

230 V, 50/60 Hz

Power during production

1,200 Watt

Air consumption

6 bar, 150 l/min

CP 350

Bag width (pillow)

75 - 350 mm

Max. bag length

Unlimited

Max. bag length per sealing step

235 mm

Max. production speed

30 bags/min

Film thickness

25 - 120 µ

Core diameter

76 mm (3")

Max. film width

750 mm

Max. outer diameter film roll

320 mm

Voltage

230 V, 50/60 Hz

Power during production

1,200 Watt

Air consumption

6 bar, 150 l/min

CP 350 PLUS

Bag width (pillow)

75 - 350 mm

Max. bag length

Unlimited

Max. bag length per sealing step

235 mm

Max. production speed

40 bags/min

Film thickness

25 - 120 µ

Core diameter

76 mm (3")

Max. film width

750 mm

Max. outer diameter film roll

320 mm

Voltage

230 V, 50/60 Hz

Power during production

1,200 Watt

Air consumption

6 bar, 150 l/min

All dimensions and specifications are indications based on standard set up. Final details depend on customer specifications.

We’re always happy to advise you or help you find the most efficient and affordable solution to your packaging challenges. Get in touch today – without obligations – to ask any questions you may have!
