WE INTRODUCE MINI; AN EXTREMELY COMPACT AND COMPETITIVE PACKAGING MACHINE.

Since the introduction of the MP125 in 2009, which was succeeded by the MP150 in 2012, these small VFFS machines have been a great success for GKS Packaging. The MP125 was the first vertical form fill and seal machine with a machine volume of less than one cubic meter and has been successfully installed in countless applications worldwide.

In 2014 GKS introduced the unique fully modular construction method of its CP and UP packaging machine series. All well-known and proven advantages of this innovative modularity are now implemented into MINI, the successor to the MP150.

With MINI, GKS once again offers an extremely compact and competitive packaging machine, built according its inventive simplicity and characterized by a ‘frameless design’.

Despite its small dimensions, MINI is a ‘mature’ machine with a capacity of up to 65 packs per minute and a maximum bag width of 160mm.

MINI is equipped as standard with a heat sealing system for PP/laminate/paper-material, lateral film adjustment, a 7” full color touchscreen, end of film detection and servo controlled film transport.

The design of this ‘frameless’ machine also takes into account the CO2 footprint and the environment. For example the side frames are made entirely of recycled ocean plastic.

Like all other GKS machines, MINI can be equipped with many options. Such as a sealing system for PE film, MAP packing, easy opening with pouring opening, block bottom mechanism, photocell for pre-printed film and thermal transfer printer.

Also several types of dosing systems can be placed above MINI, such as a weigher, pump or auger filler. Due to its low construction height, MINI is also very suitable for manual filling.

Applications for MINI are numerous, such as packing small portions of dressing and sauces, cheese, croutons or nuts.

The first MINI’s have recently been installed and the first production series are now rolling off the factory floor.

Check out MINI!

WE INTRODUCE MINI; AN EXTREMELY COMPACT AND COMPETITIVE PACKAGING MACHINE.

Since the introduction of the MP125 in 2009, which was succeeded by the MP150 in 2012, these small VFFS machines have been a great success for GKS Packaging. The MP125 was the first vertical form fill and seal machine with a machine volume of less than one cubic meter and has been successfully installed in countless applications worldwide.

In 2014 GKS introduced the unique fully modular construction method of its CP and UP packaging machine series. All well-known and proven advantages of this innovative modularity are now implemented into MINI, the successor to the MP150.

With MINI, GKS once again offers an extremely compact and competitive packaging machine, built according its inventive simplicity and characterized by a ‘frameless design’.

Despite its small dimensions, MINI is a ‘mature’ machine with a capacity of up to 65 packs per minute and a maximum bag width of 160mm.

MINI is equipped as standard with a heat sealing system for PP/laminate/paper-material, lateral film adjustment, a 7” full color touchscreen, end of film detection and servo controlled film transport.

The design of this ‘frameless’ machine also takes into account the CO2 footprint and the environment. For example the side frames are made entirely of recycled ocean plastic.

Like all other GKS machines, MINI can be equipped with many options. Such as a sealing system for PE film, MAP packing, easy opening with pouring opening, block bottom mechanism, photocell for pre-printed film and thermal transfer printer.

Also several types of dosing systems can be placed above MINI, such as a weigher, pump or auger filler. Due to its low construction height, MINI is also very suitable for manual filling.

Applications for MINI are numerous, such as packing small portions of dressing and sauces, cheese, croutons or nuts.

The first MINI’s have recently been installed and the first production series are now rolling off the factory floor.

Check out MINI!

WE INTRODUCE MINI; AN EXTREMELY COMPACT AND COMPETITIVE PACKAGING MACHINE.

Since the introduction of the MP125 in 2009, which was succeeded by the MP150 in 2012, these small VFFS machines have been a great success for GKS Packaging. The MP125 was the first vertical form fill and seal machine with a machine volume of less than one cubic meter and has been successfully installed in countless applications worldwide.

In 2014 GKS introduced the unique fully modular construction method of its CP and UP packaging machine series. All well-known and proven advantages of this innovative modularity are now implemented into MINI, the successor to the MP150.

With MINI, GKS once again offers an extremely compact and competitive packaging machine, built according its inventive simplicity and characterized by a ‘frameless design’.

Despite its small dimensions, MINI is a ‘mature’ machine with a capacity of up to 65 packs per minute and a maximum bag width of 160mm.

MINI is equipped as standard with a heat sealing system for PP/laminate/paper-material, lateral film adjustment, a 7” full color touchscreen, end of film detection and servo controlled film transport.

The design of this ‘frameless’ machine also takes into account the CO2 footprint and the environment. For example the side frames are made entirely of recycled ocean plastic.

Like all other GKS machines, MINI can be equipped with many options. Such as a sealing system for PE film, MAP packing, easy opening with pouring opening, block bottom mechanism, photocell for pre-printed film and thermal transfer printer.

Also several types of dosing systems can be placed above MINI, such as a weigher, pump or auger filler. Due to its low construction height, MINI is also very suitable for manual filling.

Applications for MINI are numerous, such as packing small portions of dressing and sauces, cheese, croutons or nuts.

The first MINI’s have recently been installed and the first production series are now rolling off the factory floor.

Check out MINI!

EP 250

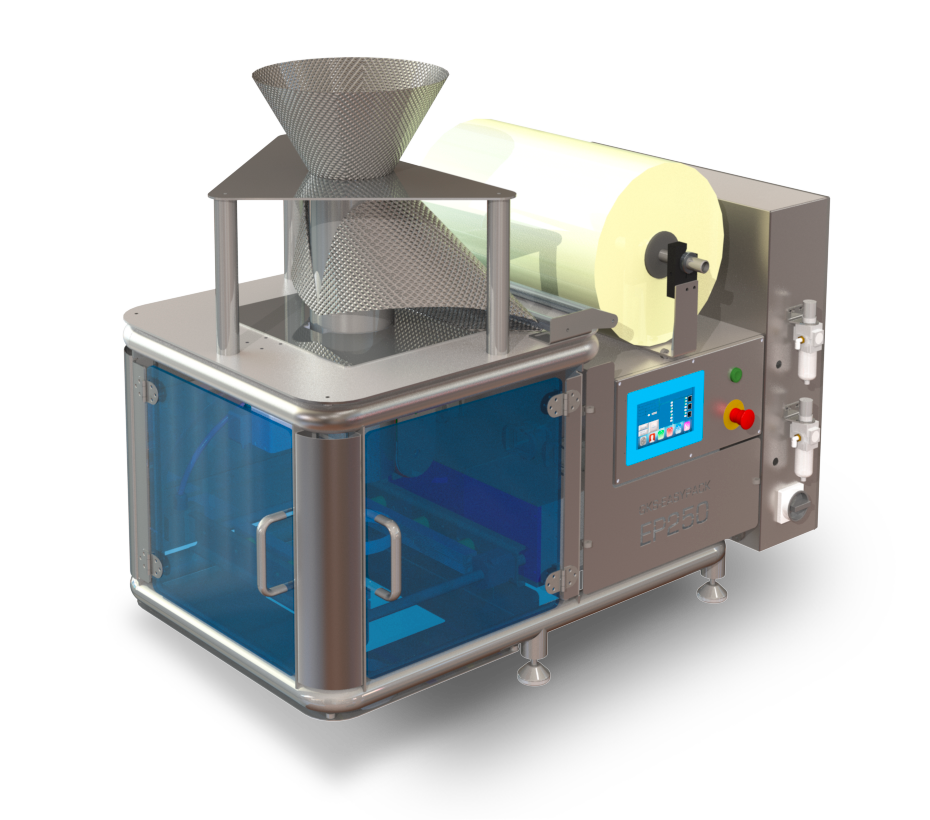

EP 250: Fast and easy changes make small series production easy

The EP 250 form, fill and seal machine is optimized for creating bags from a flat film off of a reel and is suitable for packing many types of food as well as non-food products. It can also be used for manual filling. Due to its compact design and small footprint the EP 250 can be used flexibly in confined areas.

EP 250 highlights

Compact and flexible
Robust build quality
Modular construction
Allen Bradley PLC and electrical components
Servo driven film transport for accurate bag length

Download data sheet

Video: Modular design

Technical specifications

EP 250

Bag width (pillow)

250 mm

Max. bag length

Unlimited mm

Max. bag length per sealing step

235 mm

Max. production speed

20 bags/min

Film thickness

25 - 120 µ

Core diameter

76 mm (3")

Max. film width

540 mm

Max. outer diameter film roll

320 mm

Voltage

230 V, 50/60Hz

Power during production

1,200 Watt

Air consumption

6 bar, 150 l/min

All dimensions and specifications are indications based on standard set up. Final details depend on customer specifications.
