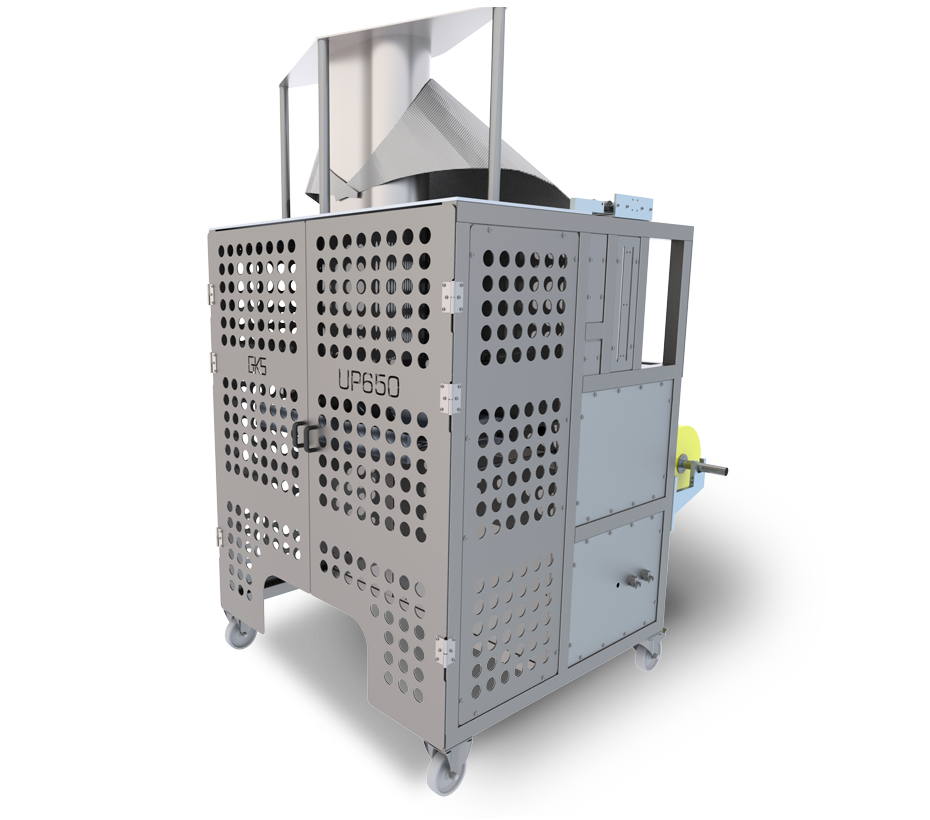

UP 650: The ‘Plug & Play’ small form factor packaging machine

The ‘Plug & Play’, self-supported UP 650 is significantly smaller than other bulk packaging machines through its fundamentally smaller dimensions system. The UP650 is extremely suited for production processes where bulk volume bags are created without losing flexibility. The UP 650 is available in a both heat seal configuration that can handle all types of PP and laminated film as well as impulse configuration that can handle all types of PE film.

UP 650 highlights

  • Stainless steel; functional design
  • Robust building quality
  • PLC controls with full color touch screen
  • Impulse for PE or heat seal for PP and laminates
  • Low maintenance mechanism
  • Mobile machine

Download data sheet

Video: Modular design

Technical specifications

UP 650

Bag width (pillow)

400 - 650 mm

Max. bag length

Unlimited mm

Max. bag length per sealing step

450 mm

Max. production speed

Heatseal: 8 bags/min
Impulse: 5 bags/min

Film thickness

40 - 150 µ

Core diameter

76 mm (3")

Max. film width

1,350 mm

Max. outer diameter film roll

320 mm

Voltage

230 V, 50 Hz

Power during production

1,500 Watt

Air consumption

6 bar, 200 l/min

All dimensions and specifications are indications based on standard set up. Final details depend on customer specifications.
