FLOW series

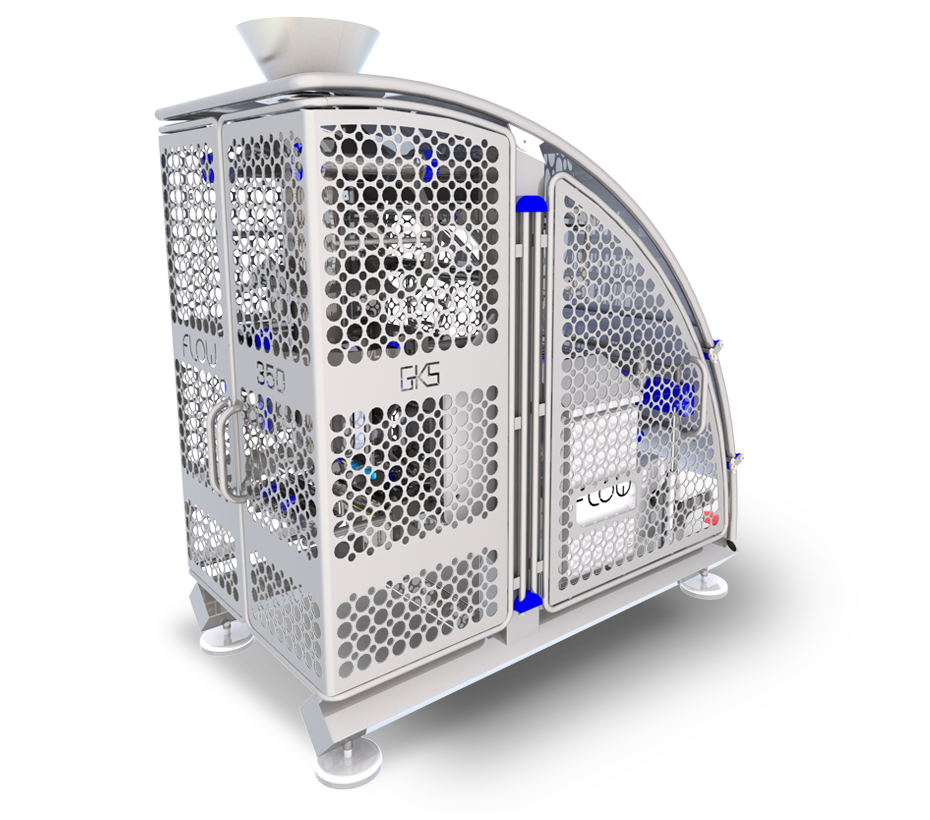

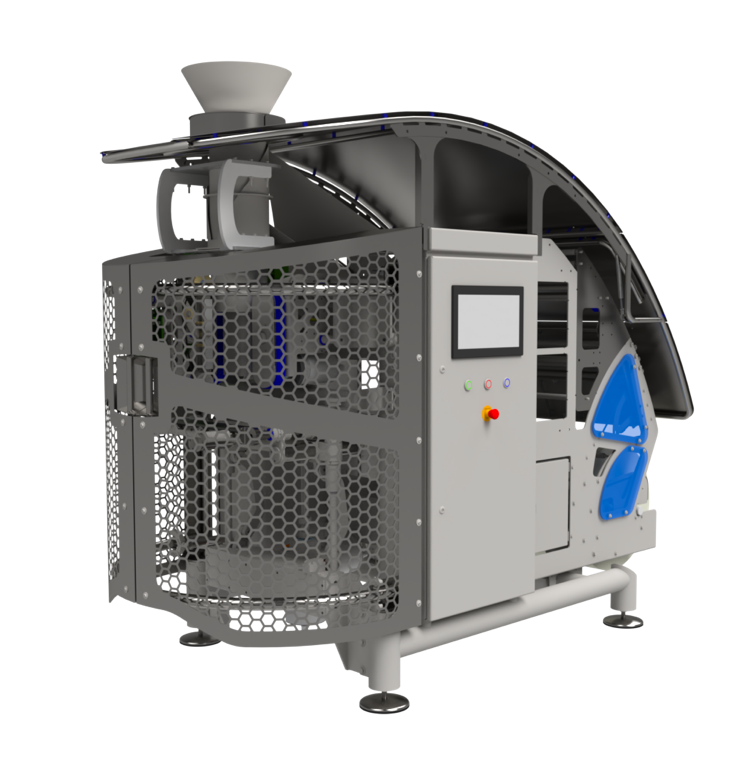

FLOW 350 and FLOW 500: Next generation vertical form, fill and seal machines

The machines have an integrated touch screen with 200 programs, allowing for simple operation and control. The machine can be washed down completely on the outside and inside of the frame and has an IP rating of IP67 through the entire machine and IP69K on the servomotors.

FLOW 350 and FLOW 500 highlights

  • EHEDG; stainless steel; hygienic design
  • Modular construction
  • High IP rating; IP67 throughout the machine with IP69 servo motors
  • Allen Bradley PLC and electrical components
  • Servo drive on both the sealing system and film transport
  • Photocell for bag length detection with pre-printed film
  • End of film detection
  • Ergonomic film support with motorized drive and pneumatically locked axle
  • 11” full color touch screen
  • Low power and air consumption

Download data sheet

Video: FLOW + Multiweigh 16 head frozen breaded snacks

Technical specifications

FLOW 350

FLOW 500

Bag width (pillow)

50 - 350 mm
200 - 500 mm

Max. bag length

Unlimited mm

Max. bag length per sealing step

470 mm
610 mm

Max. production speed

120 bags/min
90 bags/min

Film thickness

25 - 130 µ

Core diameter

76 mm (3")

Max. film width

740 mm
1,040 mm

Max. outer diameter film roll

500 mm

Voltage

230 V, 50 Hz, 16 Amp

Power during production

1,800 Watt

Air consumption

6 bar, 100 l/min

FLOW 350

Bag width (pillow)

50 - 350 mm

Max. bag length

Unlimited mm

Max. bag length per sealing step

470 mm

Max. production speed

120 bags/min

Film thickness

25 - 130 µ

Core diameter

76 mm (3")

Max. film width

740 mm

Max. outer diameter film roll

500 mm

Voltage

230 V, 50 Hz, 16 Amp

Power during production

1,800 Watt

Air consumption

6 bar, 100 l/min

FLOW 500

Bag width (pillow)

200 - 500 mm

Max. bag length

Unlimited mm

Max. bag length per sealing step

610 mm

Max. production speed

90 bags/min

Film thickness

25 - 130 µ

Core diameter

76 mm (3")

Max. film width

1,040 mm

Max. outer diameter film roll

500 mm

Voltage

230 V, 50 Hz, 16 Amp

Power during production

1,800 Watt

Air consumption

6 bar, 100 l/min

All dimensions and specifications are indications based on standard set up. Final details depend on customer specifications.

We’re always happy to advise you or help you find the most efficient and affordable solution to your packaging challenges. Get in touch today – without obligations – to ask any questions you may have!
