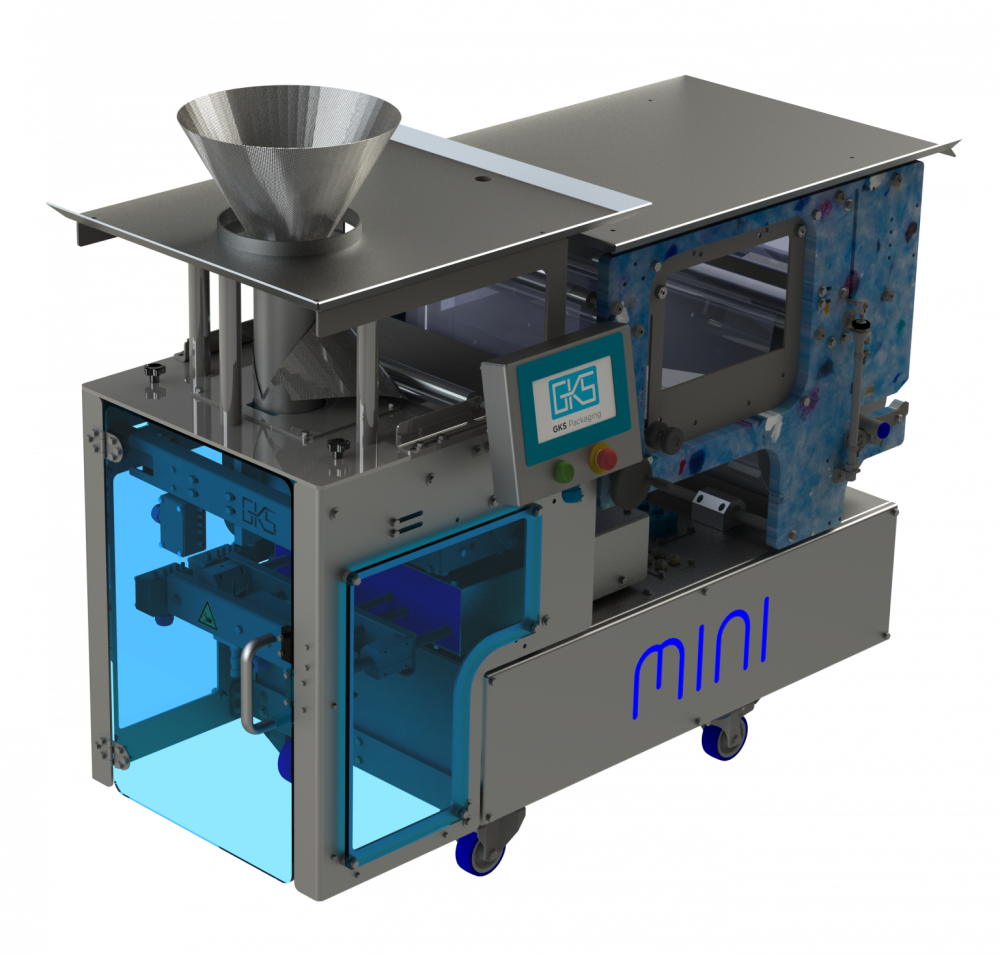

MINI

MINI: Ideal for medium to high capacity packaging needs

The MINI form, fill and seal machine is optimized for efficiently and automatically creating bags from a flat film off of a reel. The machine is suitable for packing many types of food as well as non-food products and can be used in smaller production areas as well as industrial environments. Manual filling is also possible.

MINI highlights

  • Efficient and flexible
  • Compact modular "frameless" design
  • Robust build quality
  • Allen Bradley PLC and electrical components
  • Servo driven film transport for accurate bag length
  • Ergonomic film support with film tensioning system and film brake
  • Fully automatic packaging solution in 1 m3

Download data sheet

Video: MINI packing mayonnaise/dressing in small sachet

Technical specifications

MINI

Bag width (pillow)

40 - 160 mm

Max. bag length

Unlimited mm

Max. bag length per sealing step

170 mm

Max. production speed

Up to 65 bags/min

Film thickness

25 - 120 µ

Core diameter

76 mm (3")

Max. film width

360 mm

Max. outer diameter film roll

320 mm

Voltage

230 V, 50/60Hz

Power during production

1,200 Watt

Air consumption

6 bar, 156 l/min

All dimensions and specifications are indications based on standard set up. Final details depend on customer specifications.

We’re always happy to advise you or help you find the most efficient and affordable solution to your packaging challenges. Get in touch today – without obligations – to ask any questions you may have!
