WE INTRODUCE MINI; AN EXTREMELY COMPACT AND COMPETITIVE PACKAGING MACHINE.

Since the introduction of the MP125 in 2009, which was succeeded by the MP150 in 2012, these small VFFS machines have been a great success for GKS Packaging. The MP125 was the first vertical form fill and seal machine with a machine volume of less than one cubic meter and has been successfully installed in countless applications worldwide.

In 2014 GKS introduced the unique fully modular construction method of its CP and UP packaging machine series. All well-known and proven advantages of this innovative modularity are now implemented into MINI, the successor to the MP150.

With MINI, GKS once again offers an extremely compact and competitive packaging machine, built according its inventive simplicity and characterized by a ‘frameless design’.

Despite its small dimensions, MINI is a ‘mature’ machine with a capacity of up to 65 packs per minute and a maximum bag width of 160mm.

MINI is equipped as standard with a heat sealing system for PP/laminate/paper-material, lateral film adjustment, a 7” full color touchscreen, end of film detection and servo controlled film transport.

The design of this ‘frameless’ machine also takes into account the CO2 footprint and the environment. For example the side frames are made entirely of recycled ocean plastic.

Like all other GKS machines, MINI can be equipped with many options. Such as a sealing system for PE film, MAP packing, easy opening with pouring opening, block bottom mechanism, photocell for pre-printed film and thermal transfer printer.

Also several types of dosing systems can be placed above MINI, such as a weigher, pump or auger filler. Due to its low construction height, MINI is also very suitable for manual filling.

Applications for MINI are numerous, such as packing small portions of dressing and sauces, cheese, croutons or nuts.

The first MINI’s have recently been installed and the first production series are now rolling off the factory floor.

Check out MINI!

WE INTRODUCE MINI; AN EXTREMELY COMPACT AND COMPETITIVE PACKAGING MACHINE.

Since the introduction of the MP125 in 2009, which was succeeded by the MP150 in 2012, these small VFFS machines have been a great success for GKS Packaging. The MP125 was the first vertical form fill and seal machine with a machine volume of less than one cubic meter and has been successfully installed in countless applications worldwide.

In 2014 GKS introduced the unique fully modular construction method of its CP and UP packaging machine series. All well-known and proven advantages of this innovative modularity are now implemented into MINI, the successor to the MP150.

With MINI, GKS once again offers an extremely compact and competitive packaging machine, built according its inventive simplicity and characterized by a ‘frameless design’.

Despite its small dimensions, MINI is a ‘mature’ machine with a capacity of up to 65 packs per minute and a maximum bag width of 160mm.

MINI is equipped as standard with a heat sealing system for PP/laminate/paper-material, lateral film adjustment, a 7” full color touchscreen, end of film detection and servo controlled film transport.

The design of this ‘frameless’ machine also takes into account the CO2 footprint and the environment. For example the side frames are made entirely of recycled ocean plastic.

Like all other GKS machines, MINI can be equipped with many options. Such as a sealing system for PE film, MAP packing, easy opening with pouring opening, block bottom mechanism, photocell for pre-printed film and thermal transfer printer.

Also several types of dosing systems can be placed above MINI, such as a weigher, pump or auger filler. Due to its low construction height, MINI is also very suitable for manual filling.

Applications for MINI are numerous, such as packing small portions of dressing and sauces, cheese, croutons or nuts.

The first MINI’s have recently been installed and the first production series are now rolling off the factory floor.

Check out MINI!

WE INTRODUCE MINI; AN EXTREMELY COMPACT AND COMPETITIVE PACKAGING MACHINE.

Since the introduction of the MP125 in 2009, which was succeeded by the MP150 in 2012, these small VFFS machines have been a great success for GKS Packaging. The MP125 was the first vertical form fill and seal machine with a machine volume of less than one cubic meter and has been successfully installed in countless applications worldwide.

In 2014 GKS introduced the unique fully modular construction method of its CP and UP packaging machine series. All well-known and proven advantages of this innovative modularity are now implemented into MINI, the successor to the MP150.

With MINI, GKS once again offers an extremely compact and competitive packaging machine, built according its inventive simplicity and characterized by a ‘frameless design’.

Despite its small dimensions, MINI is a ‘mature’ machine with a capacity of up to 65 packs per minute and a maximum bag width of 160mm.

MINI is equipped as standard with a heat sealing system for PP/laminate/paper-material, lateral film adjustment, a 7” full color touchscreen, end of film detection and servo controlled film transport.

The design of this ‘frameless’ machine also takes into account the CO2 footprint and the environment. For example the side frames are made entirely of recycled ocean plastic.

Like all other GKS machines, MINI can be equipped with many options. Such as a sealing system for PE film, MAP packing, easy opening with pouring opening, block bottom mechanism, photocell for pre-printed film and thermal transfer printer.

Also several types of dosing systems can be placed above MINI, such as a weigher, pump or auger filler. Due to its low construction height, MINI is also very suitable for manual filling.

Applications for MINI are numerous, such as packing small portions of dressing and sauces, cheese, croutons or nuts.

The first MINI’s have recently been installed and the first production series are now rolling off the factory floor.

Check out MINI!

COMBIMAT series

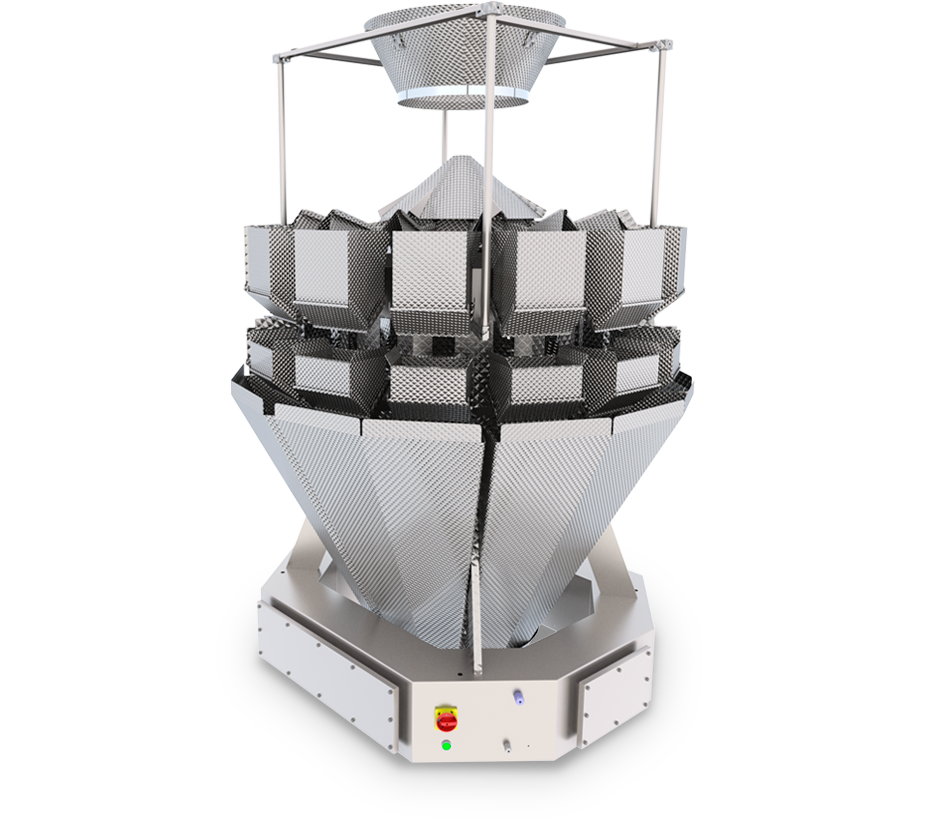

COMBIMAT SERIES: User friendly multihead weighers

The multihead Combimat weighers transport products via a central vibrating top cone and vibrating troughs to the storage bins. These drop products into the weighing bins, where highly accurate load cells determine the weight. The weighers are made of stainless steel and easy to clean because all trays, gutters and chutes can be dismantled and put back again without using tools.

COMBIMAT SERIES highlights

Stainless steel construction; easy to clean
Robust build quality
Up to 5 liter weigh pans for large volume products
Up to 80 drops per minute
All product contact parts can be removed without tools
10,4" color touch screen; 99 programs can be memorized and selected
Easy controls for setting speed, weight, timers, etc.
Synchronization with all packaging machines
Opening and closing of all buckets with stepper motors, no compressed air needed
Load cell under top cone to control the infeed

Download data sheet

COMBIMAT series

Video: UP 300 + 10 head multi head weigher frozen kebab meat

Technical specifications

Model CM B14

Model CM B14 FFW

Weigh pans

14 / 2.5 l

14 / 5.0 l

Min. weight portion

100 gr

Max. weight portion

2,500 gr

3,000 gr

Max. speed

80/min

Program selection

99

Power

230 V / 2kW

Weight

500 kg

850 kg

Model CM B14

Weigh pans

14 / 2.5 l

Min. weight portion

100 gr

Max. weight portion

2,500 gr

Max. speed

80/min

Program selection

99

Power

230 V / 2 kW

Weight

500 kg

Model CM B14 FFW

Weigh pans

14 / 5.0 l

Min. weight portion

100 gr

Max. weight portion

3,000 gr

Max. speed

80/min

Program selection

99

Power

230 V / 2 kW

Weight

850 kg

All dimensions and specifications are indications based on standard set up. Final details depend on customer specifications.
