WE INTRODUCE MINI; AN EXTREMELY COMPACT AND COMPETITIVE PACKAGING MACHINE.

Since the introduction of the MP125 in 2009, which was succeeded by the MP150 in 2012, these small VFFS machines have been a great success for GKS Packaging. The MP125 was the first vertical form fill and seal machine with a machine volume of less than one cubic meter and has been successfully installed in countless applications worldwide.

In 2014 GKS introduced the unique fully modular construction method of its CP and UP packaging machine series. All well-known and proven advantages of this innovative modularity are now implemented into MINI, the successor to the MP150.

With MINI, GKS once again offers an extremely compact and competitive packaging machine, built according its inventive simplicity and characterized by a ‘frameless design’.

Despite its small dimensions, MINI is a ‘mature’ machine with a capacity of up to 65 packs per minute and a maximum bag width of 160mm.

MINI is equipped as standard with a heat sealing system for PP/laminate/paper-material, lateral film adjustment, a 7” full color touchscreen, end of film detection and servo controlled film transport.

The design of this ‘frameless’ machine also takes into account the CO2 footprint and the environment. For example the side frames are made entirely of recycled ocean plastic.

Like all other GKS machines, MINI can be equipped with many options. Such as a sealing system for PE film, MAP packing, easy opening with pouring opening, block bottom mechanism, photocell for pre-printed film and thermal transfer printer.

Also several types of dosing systems can be placed above MINI, such as a weigher, pump or auger filler. Due to its low construction height, MINI is also very suitable for manual filling.

Applications for MINI are numerous, such as packing small portions of dressing and sauces, cheese, croutons or nuts.

The first MINI’s have recently been installed and the first production series are now rolling off the factory floor.

Check out MINI!

WE INTRODUCE MINI; AN EXTREMELY COMPACT AND COMPETITIVE PACKAGING MACHINE.

Since the introduction of the MP125 in 2009, which was succeeded by the MP150 in 2012, these small VFFS machines have been a great success for GKS Packaging. The MP125 was the first vertical form fill and seal machine with a machine volume of less than one cubic meter and has been successfully installed in countless applications worldwide.

In 2014 GKS introduced the unique fully modular construction method of its CP and UP packaging machine series. All well-known and proven advantages of this innovative modularity are now implemented into MINI, the successor to the MP150.

With MINI, GKS once again offers an extremely compact and competitive packaging machine, built according its inventive simplicity and characterized by a ‘frameless design’.

Despite its small dimensions, MINI is a ‘mature’ machine with a capacity of up to 65 packs per minute and a maximum bag width of 160mm.

MINI is equipped as standard with a heat sealing system for PP/laminate/paper-material, lateral film adjustment, a 7” full color touchscreen, end of film detection and servo controlled film transport.

The design of this ‘frameless’ machine also takes into account the CO2 footprint and the environment. For example the side frames are made entirely of recycled ocean plastic.

Like all other GKS machines, MINI can be equipped with many options. Such as a sealing system for PE film, MAP packing, easy opening with pouring opening, block bottom mechanism, photocell for pre-printed film and thermal transfer printer.

Also several types of dosing systems can be placed above MINI, such as a weigher, pump or auger filler. Due to its low construction height, MINI is also very suitable for manual filling.

Applications for MINI are numerous, such as packing small portions of dressing and sauces, cheese, croutons or nuts.

The first MINI’s have recently been installed and the first production series are now rolling off the factory floor.

Check out MINI!

WE INTRODUCE MINI; AN EXTREMELY COMPACT AND COMPETITIVE PACKAGING MACHINE.

Since the introduction of the MP125 in 2009, which was succeeded by the MP150 in 2012, these small VFFS machines have been a great success for GKS Packaging. The MP125 was the first vertical form fill and seal machine with a machine volume of less than one cubic meter and has been successfully installed in countless applications worldwide.

In 2014 GKS introduced the unique fully modular construction method of its CP and UP packaging machine series. All well-known and proven advantages of this innovative modularity are now implemented into MINI, the successor to the MP150.

With MINI, GKS once again offers an extremely compact and competitive packaging machine, built according its inventive simplicity and characterized by a ‘frameless design’.

Despite its small dimensions, MINI is a ‘mature’ machine with a capacity of up to 65 packs per minute and a maximum bag width of 160mm.

MINI is equipped as standard with a heat sealing system for PP/laminate/paper-material, lateral film adjustment, a 7” full color touchscreen, end of film detection and servo controlled film transport.

The design of this ‘frameless’ machine also takes into account the CO2 footprint and the environment. For example the side frames are made entirely of recycled ocean plastic.

Like all other GKS machines, MINI can be equipped with many options. Such as a sealing system for PE film, MAP packing, easy opening with pouring opening, block bottom mechanism, photocell for pre-printed film and thermal transfer printer.

Also several types of dosing systems can be placed above MINI, such as a weigher, pump or auger filler. Due to its low construction height, MINI is also very suitable for manual filling.

Applications for MINI are numerous, such as packing small portions of dressing and sauces, cheese, croutons or nuts.

The first MINI’s have recently been installed and the first production series are now rolling off the factory floor.

Check out MINI!

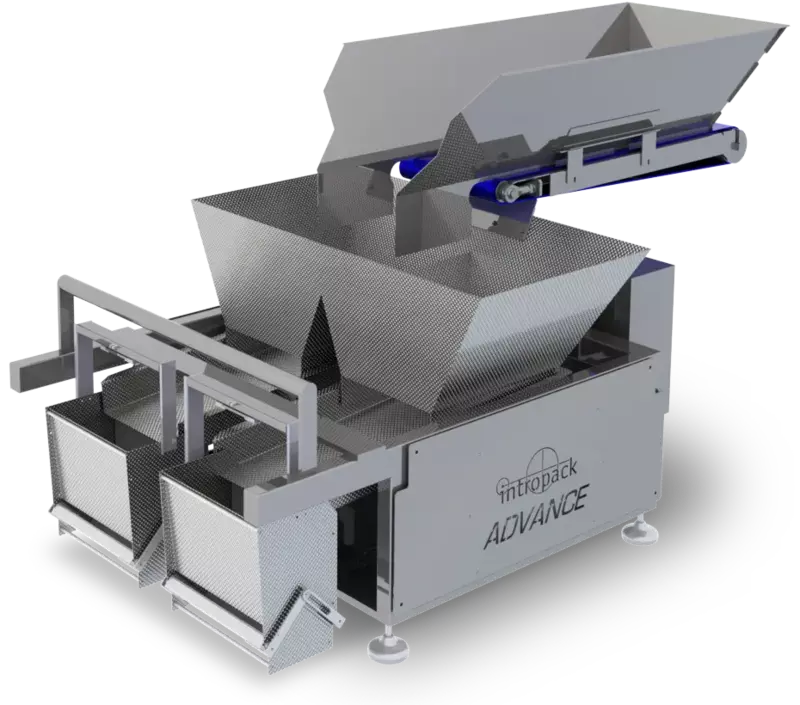

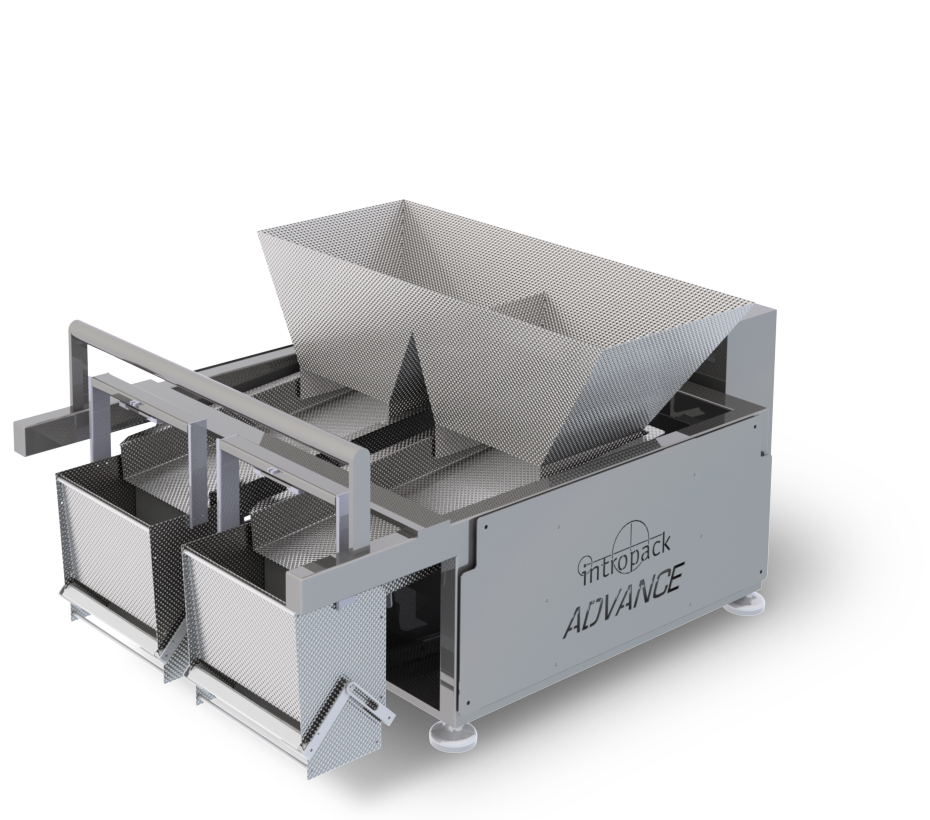

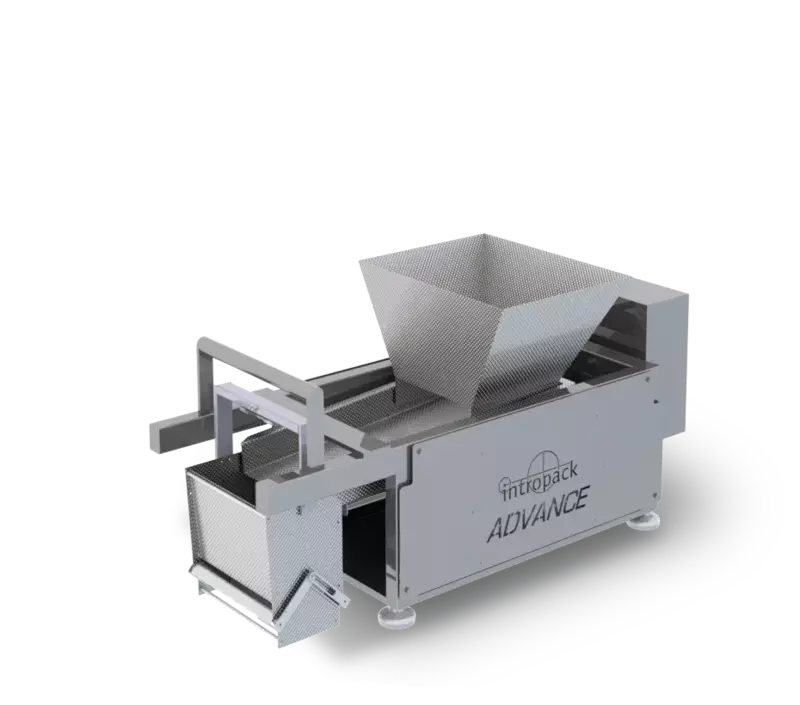

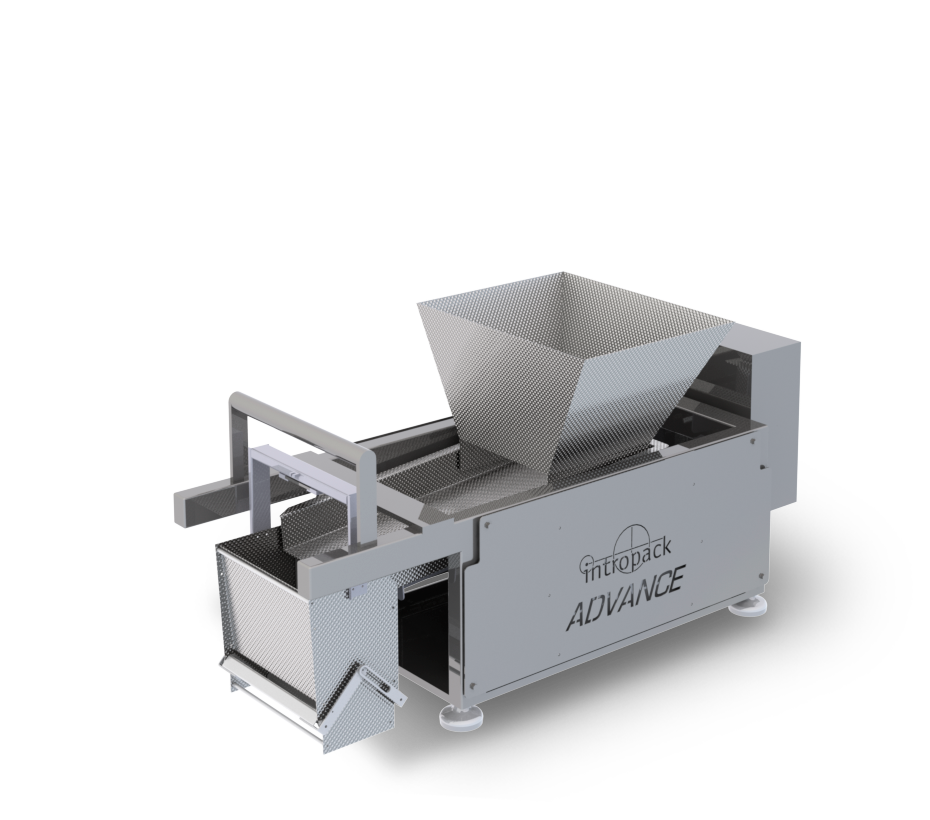

GALAXY series

GALAXY SERIES: Easy to set up and operate

Galaxy weighing machines are extremely accurate, fast, efficient and reliable and can work with a very broad range of products and product types. Setup and operation are extremely simple and fast and the machines are quick and easy to clean thanks to their open construction and quick release closures.

GALAXY SERIES highlights

Compact and flexible
Complete stainless steel construction
Rigidized plate on product contact surfaces
Robust build quality
10 Liter weigh pans for large volume products
Single and double head versions
Various control options
Easy to operate
Closing flaps (bulk and fine dosing) for fast and accurate weighing results
Product hopper belt to control the product infeed
Hopper with automatic dividing plate (double head version)
Synchronization with all packaging machines
PLC controls with SMART display

Download data sheet

Video: GALAXY single head weigher + CP 300 salads

Technical specifications

Single head

Double head

Weigh heads

1

2

Volume weigh pan

10 liter (other on request)

Min. weight portion

50 gr

Max. weight portion

3,000 gr

Max. speed

15/min

30/min

Control

PLC with smart display

Number of programs

10

Power

230 V, 50 Hz (L1+N)

Compressed air

4 - 6 bar

Single head

Weigh heads

1

Volume weigh pan

10 liter (other on request)

Min. weight portion

50 gr

Max. weight portion

3,000 gr

Max. speed

15/min

Control

PLC with smart display

Number of programs

10

Power

230 V, 50 Hz (L1+N)

Compressed air

4 - 6 bar

Double head

Weigh heads

2

Volume weigh pan

10 liter (other on request)

Min. weight portion

50 gr

Max. weight portion

3,000 gr

Max. speed

30/min

Control

PLC with smart display

Number of programs

10

Power

230 V, 50 Hz (L1+N)

Compressed air

4 - 6 bar

All dimensions and specifications are indications based on standard set up. Final details depend on customer specifications.
